US Automatic vs. LiftMaster: Where Two Gate Operators Split
Your installer hands you an estimate with a brand name on it, and the name means nothing to you yet. One driveway, one gate, one motor bolted to a post, and the quote you got last week carried a different label.
Both names belong to operators that trade stocks and services. What separates them is less a verdict about which is better and more a matter of what each manufacturer prints on its own product page: load ratings, limit control, enclosure, warranty term. Put the two sheets beside each other, and you can see which one your gate leaf and your driveway already point at. Neither page is written for you, and neither is trying to talk you out of the other.
What the Two Brands Publish About Load
US Automatic prints two separate load numbers for the same swing operator. The Patriot specification table lists a Dynamic Thrust of 500 pound force and a Static Load Hold Rating of 1,100 pound force, and the bullet on that same page describes the 24-inch linear actuator as delivering 500 lbs of dynamic thrust and a static hold load rating of 1,100 lbs. Thrust is the force available to swing a leaf through its arc against wind or a hinge that has begun to drag. Static hold is the resistance a closed leaf offers when somebody leans on it. A gate can be easy to move and still easy to shoulder-open from the outside.
The Ranger HD sits in the same size class and widens the gap between those numbers. Its 24-inch actuator delivers 580 lbs of dynamic thrust and a static hold load rating of 4,000 lbs, while its gate limits stay exactly where the Patriot's are, at 16 feet of width and 800 pounds of weight for each leaf. The extra hold doesn't buy you a wider gate. It is buying a closed leaf that gives less when a bumper finds it.
Where the Control Boxes Differ

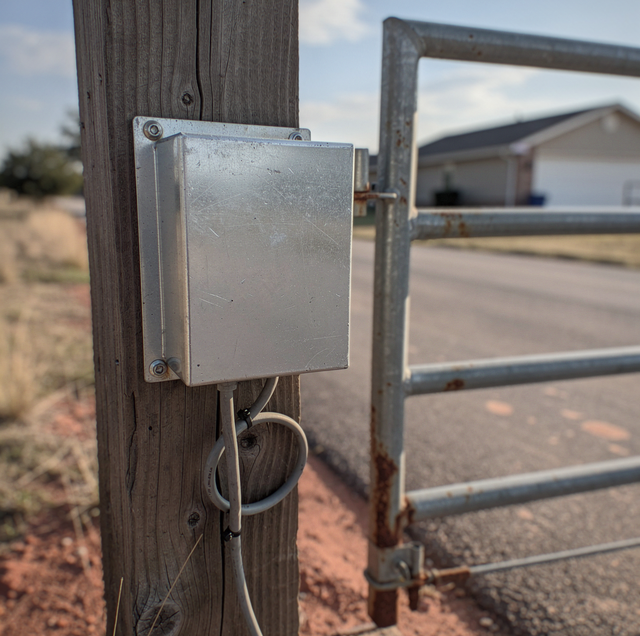

The enclosure is the one component that lives outdoors permanently, and each manufacturer describes its own. The Patriot lists a control box enclosure of powder-coated galvanized steel with a locking latch and two keys. The Ranger HD ships with a UV-resistant, non-corrosive plastic box with a hinged cover, and the powder-coated galvanized steel box is an upgrade, with the locking latch and the two keys arriving as part of that upgrade.
LiftMaster describes the LA400UL cabinet as a heavy-duty, lockable, weatherproof steel cabinet, which puts it alongside the Patriot's standard enclosure and above the Ranger HD's standard enclosure. For a post standing in open sun, the plastic box is the one with a stated UV resistance, and the steel box is the one that will not go chalky, and your installer picks between them based on the exposure your gate actually has, which you can look at from the driveway today.
Under the lid, the two US Automatic models part ways in how travel limits are managed. The Patriot uses adjustable mechanical limit switches. The Ranger HD's limits are adjusted electronically on the control board rather than at a switch anyone can point to. Both models carry independent gate safety sensitivity adjustments and a built-in timer to close, adjustable from 2 to 120 seconds. All of it is established at commissioning, and none of it is homeowner work.
What Happens When Something Blocks the Gate?
Both manufacturers answer to the same standard, and both say so on their own pages. US Automatic prints that its openers are tested by an independent lab and certified to meet the gate-operator safety standard for Class I, II, III, and IV installations. LiftMaster prints that the LA400UL is tested to the most stringent version of that same industry standard.
Certification of the operator is not the whole of it. The LiftMaster page states that external entrapment protection devices must be added to meet the gate-operator safety standard, and that your installer will recommend suitable devices for your installation, such as photoelectric or edge sensors. The operator arrives listed. The installation becomes compliant when those devices go on.
A closing gate leaf can trap a person or a vehicle, so the external entrapment devices that stop it, photoelectric eyes or edge sensors, are specified and mounted by your installer at commissioning.
That is where the contents of the carton matter more than a specification line. Each US Automatic swing opener includes one set of safety photo eyes and two remotes. The LA400UL's included items name the LMRRUL monitored retroreflective photo eye. What ships in the box changes what your installer still has to source before your gate is finished, so it belongs on the quote you are handed.
Power at the Post and the Accessory Ladder
Power input is where a gate parts company differs from a garage opener: the post is rarely near a receptacle. US Automatic lists power input for the Patriot and Ranger HD as a 12-volt DC battery, AC- or solar-charged, and carries multi-cycle battery backup as a standard feature across that line. LiftMaster lists battery backup on the LA400UL and describes the unit as a solar-ready system.
Both brands run off a battery that something keeps charged, and that something is either house current brought out to the post or a panel mounted near it. Which one your driveway gets is a question about the trench and the sun the post gets, not about the badge on the box. Neither brand forces your hand, and you can answer that one before either name is on the estimate.
The accessory ladders diverge after that. US Automatic carries mobile app compatibility as a standard feature and sells the NexxGate Smart App WiFi Receiver, an LCR premium metal wireless keypad, a premium hardwired metal keypad, and an electric gate lock. The LiftMaster page names Security+ 2.0 for the encrypted signal, the LOOPDETLM plug-in loop detector, and the KPW250 wireless keypad, with myQ carrying the phone side.
Warranty Terms and the Shape of Each Line
Warranty is the shortest entry on either sheet and the most telling. The Patriot is backed by a 3-year component and 5-year control board warranty, splitting the board out for the longer term. The Ranger HD is backed by a 3-year warranty for components and control board, one term instead of two. The LiftMaster specifications for the LA400UL list a 2-year operator warranty. Read the three terms as a statement about which part each maker expects you to replace.
The lines around those models are shaped differently. The US Automatic swing and slide range runs to four operators: the Patriot and the Ranger HD at 16 feet and 800 pounds for each leaf, the Ranger 500 at 13 feet and 400 pounds, and the Patriot RSL for a single slide gate to 32 feet and 1,000 pounds. The LiftMaster swing gate operator page lists seven, from residential up into high-traffic commercial. Country of manufacture on the US Automatic sheets is the United States.
Matching the Hardware to Your Own Driveway
Measure the leaf before you weigh a brand. A 14-foot ornamental iron leaf and a 14-foot wood-clad one are not the same load, and expansive clay under a hinge post moves the geometry the operator was aimed at when it was new. Both brands cap the swing arc at 120 degrees, and both run a 12-second cycle for a 90-degree opening.
So the division of labor is plain enough. You supply the leaf, the post, and whatever the driveway can be given for power. Your installer supplies the sizing, the entrapment devices, and the commissioning. The brand name on the estimate is the last thing chosen, not the first.
Frequently Asked Questions
US Automatic gives both swing models a 12-second cycle for a 90-degree opening, with soft start and stop handled in software. You will not speed that up yourself. If you want variable speed, your installer would be quoting from higher in the LiftMaster gate operator line.
That is your timer to close, built into both US Automatic swing models and adjustable from 2 to 120 seconds. LiftMaster meets that need with a quick-close feature that stops a car tailgating behind you, though the LA400UL page notes that it requires an optional expansion board. Ask your installer what your gate has been given.
Both US Automatic swing models list a gate setup of single or dual, so one control board runs both. LiftMaster approaches a second leaf with wireless dual-gate communication, so the two sides talk without a conduit. Either way, you are buying two actuators for your two leaves, and the question is whether a trench crosses your driveway to reach your second post.
The Ranger HD is the one built for it. US Automatic describes it as designed to withstand the elements in corrosive environments, with a non-corrosive linear actuator and a UV-resistant, non-corrosive plastic enclosure as its standard box. Both US Automatic swing models list their applications as residential, light commercial, farm and ranch, which is the language you want if your gate stands where you run your stock.
US Automatic lists an LCR premium metal wireless keypad, a premium hardwired metal keypad, an electric gate lock, and the NexxGate Smart App WiFi Receiver among its accessories. LiftMaster lists the KPW250 wireless keypad and the LOOPDETLM plug-in loop detector for the LA400UL, a loop detector being the buried sensor that opens a gate for a vehicle leaving your property. Every one is an add-on, so name the ones you want on your quote.
Sometimes, and the LiftMaster page is quite specific. The LA400UL is listed as HomeLink compatible, with the qualification that a Compatibility Bridge (not included) is required for certain vehicles. The page points to a compatibility lookup to check whether a Bridge is needed for a car, and notes that HomeLink is a registered trademark of Gentex Corporation. The answer turns on which vehicle you park in your driveway. Check your car against that list before you count the in-car button as part of the package, because the bridge is a separate item and it does not come in the operator's carton with everything else.
